Multiple Axes in Chart Widgets

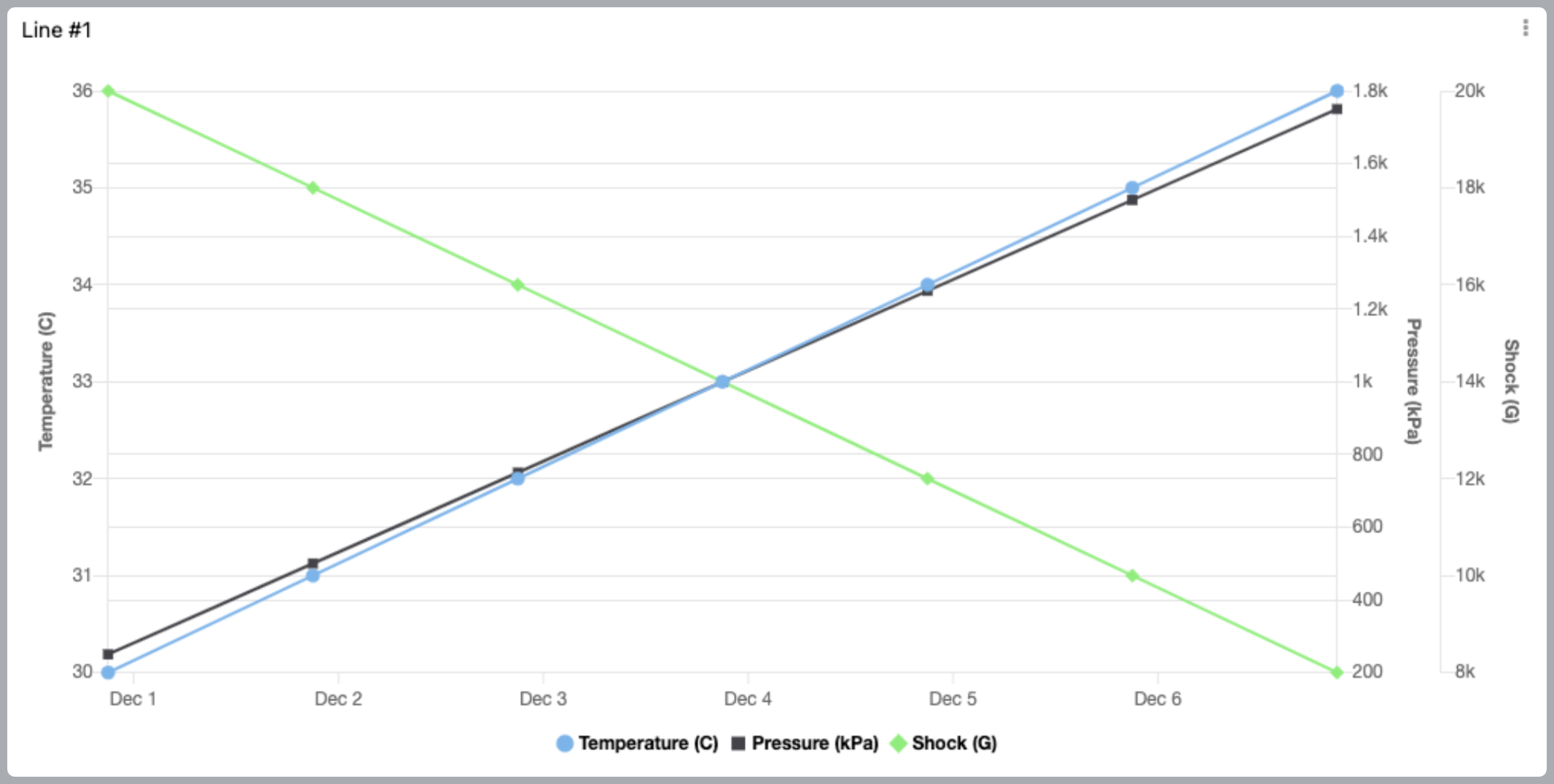

All chart-type widgets in TagoIO can be configured to display more than one Y-axis. The widgets that supports this feature are Area Chart, Line Chart, Horizontal Bar, Vertical Column and Multiple Charts.
Adding multiple axes to your chart

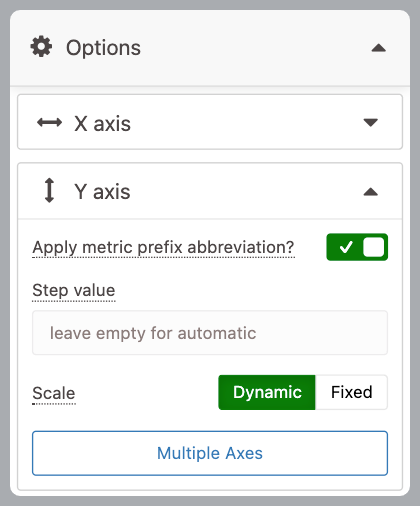

You can set multiple axes by heading to your widget's edit page, and under Options, you will find the subsection Y-axis and the Multiple Axes button.

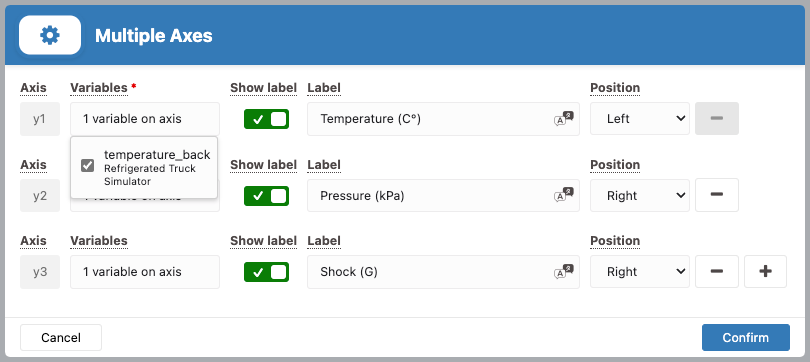

By clicking on the Multiple Axes button, you will be able to associate a variable for each of the Y-axis. You can select more than one variable for each axis; by default, all variables will be automatically associated with the y1 axis.
Additional settings can be defined, you can, for instance, define a label name or choose to hide it. The position of the axis can also be defined between right and left.
Only the variables configured in the Data From section of your chart widget can be selected in the Multiple Axes configuration screen.
After making the desired changes, click on confirm to check the the preview in the widget's edit page. Once you are done, click on Save to apply the changes.
