Frame Settings

Frame Settings

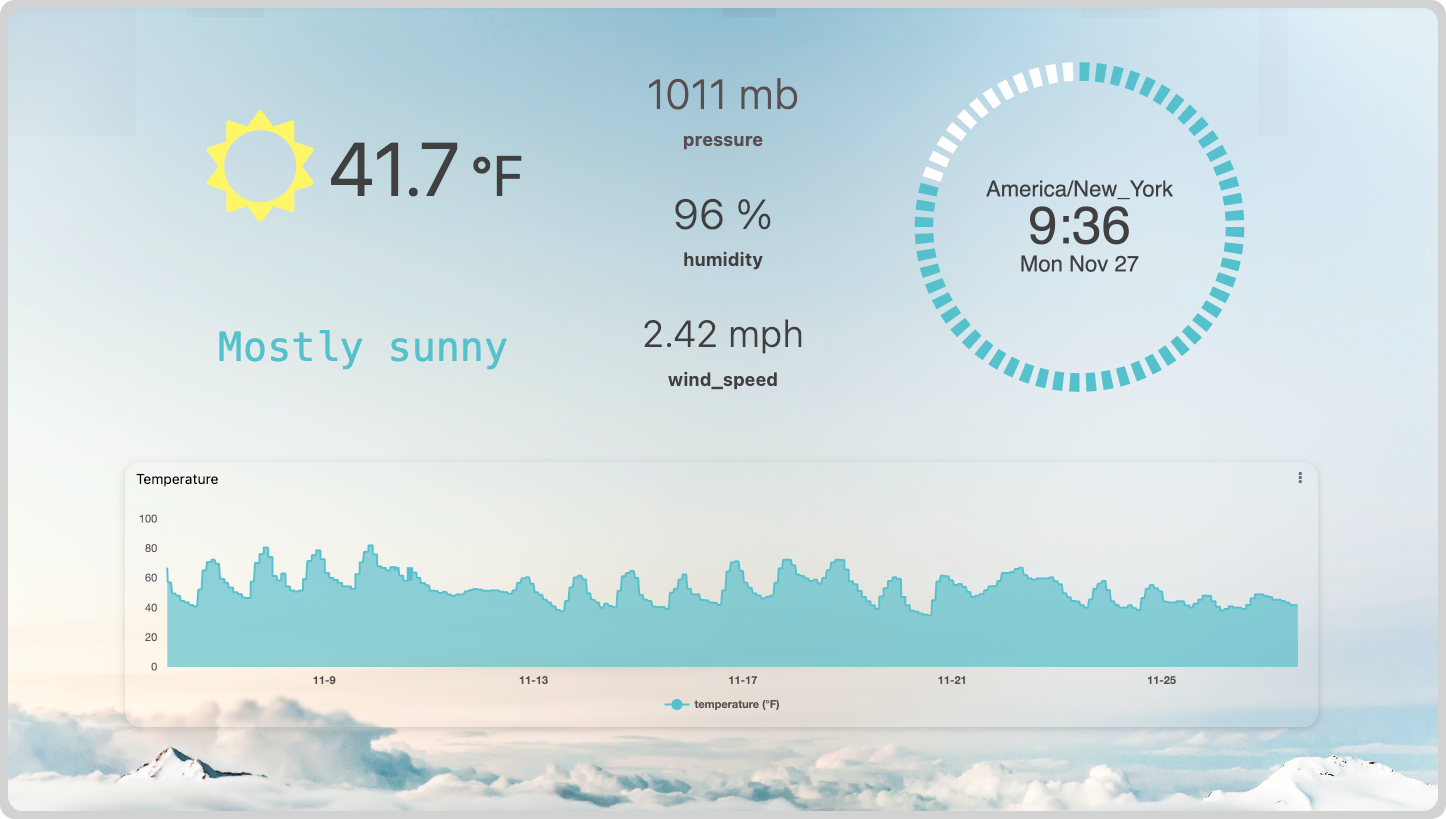

The Frame Settings allows you to adjust the appearance of your widgets by customizing the corners, padding, and shadows, as well as toggling the widget's header visibility. These options are great for making your widgets integrate seamlessly with your dashboard's design and more.

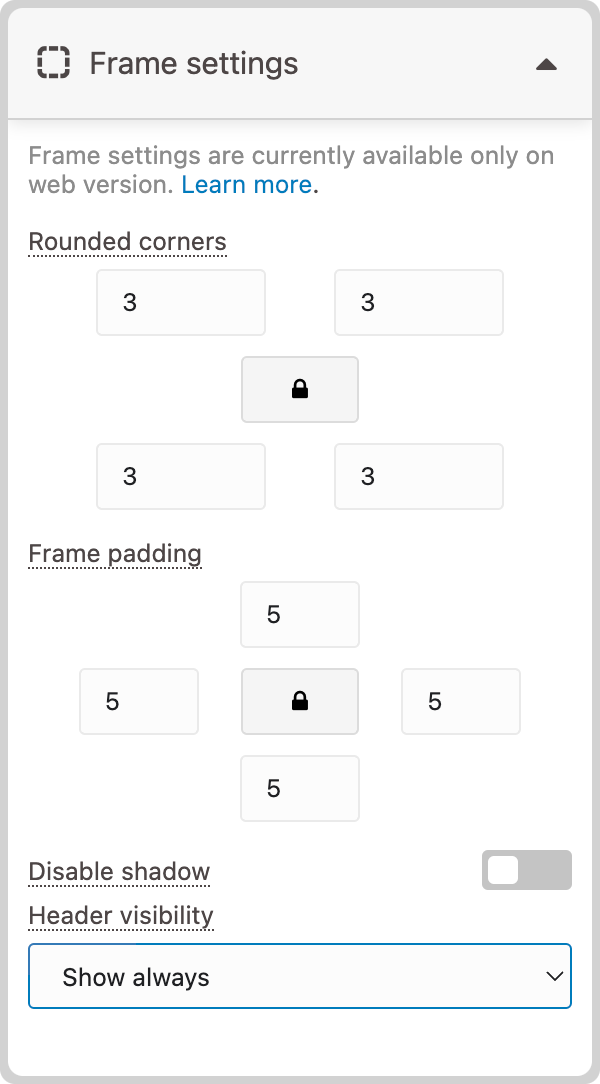

To access the Frame Settings, go to the widget's configuration page and find the 'Frame Settings' section. There, you will discover a range of options to customize the appearance of your widget.



Currently, these settings are applied to TagoIO web applications, we're working to extend this functionality to mobile platforms.

Customizing Rounded Corners

The 'Rounded Corners' option allows you to soften the edges of your widgets, giving them a more rounded appearance. You can adjust the radius of all corners simultaneously or modify each corner individually by toggling the lock icon button.

Adjusting Frame Padding

'Frame Padding' controls the space around the widget's frame. By adjusting the padding values, you can position your widgets closer together or further apart. Similar to corner customization, you can set padding for all sides at once or adjust each side separately using the lock icon button.

Disabling Widget Shadow

If you prefer a flat design or plan to combine widgets, you can disable the shadow effect by enabling the 'Disable Shadow' option. This will remove the shadow from the widget, providing a cleaner look.

Header Visibility

By default, Widget’s headers are “show always”, but you can change this behavior to something that better suits your dashboard's design, for instance showing only on hover to save space without losing the ability to use header buttons.  You can select between the following options:

  1. Show on hover: It will make the header (including the buttons) appear only when the user hovers the mouse to the top part of the widget.
  2. Show only buttons: It will only display the configured header buttons and options menu, like the export functionality for users in TagoRUN or the edit options on Admin, without any header background or title.
